Precision Rubber Pads, Glass Disks & Wear Liners

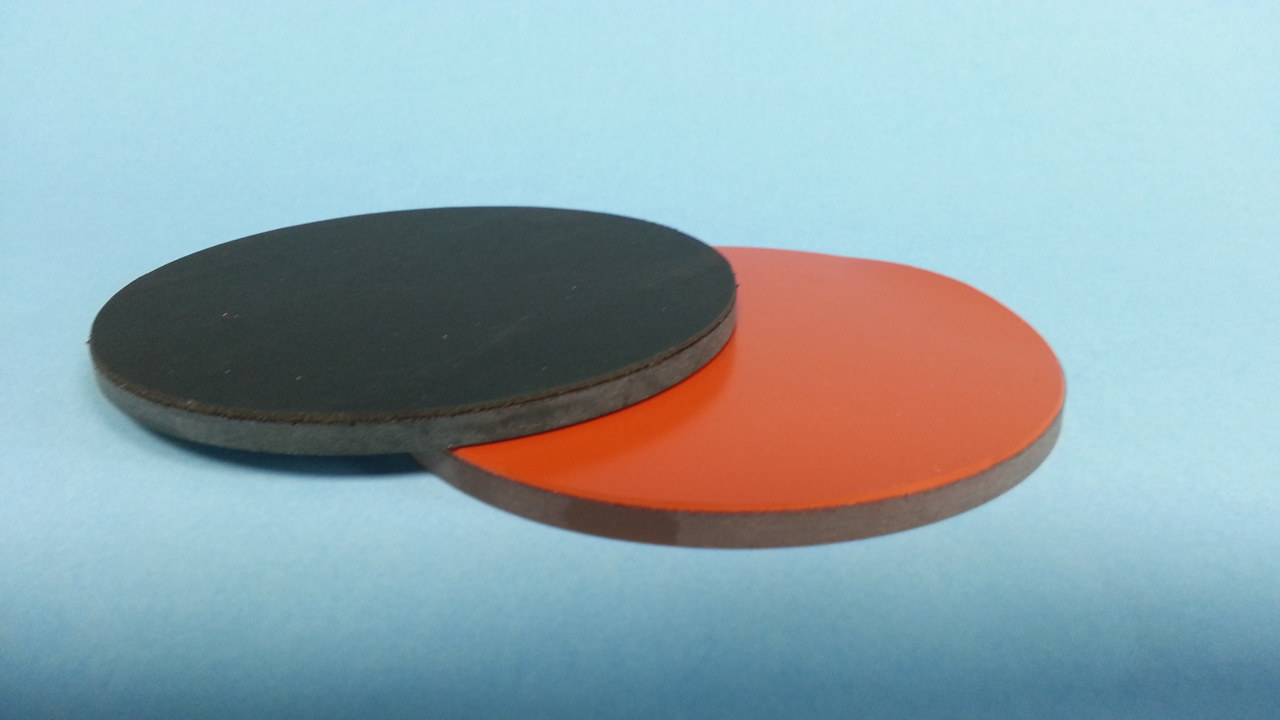

Rubber polishing pads and glass polishing discs are crucial for controlling connector endface geometries such as apex offset, radius of curvature, and fiber protrusion/undercut. Krell offers precision ground rubber pads necessary to achieve these Telcordia specification. Rubber pads are available in various durometers (hardness) and diameters. Glass disks are also available for processing flat surfaces that are required for bare fibers, SMA connectors, and MT style multifiber connectors.

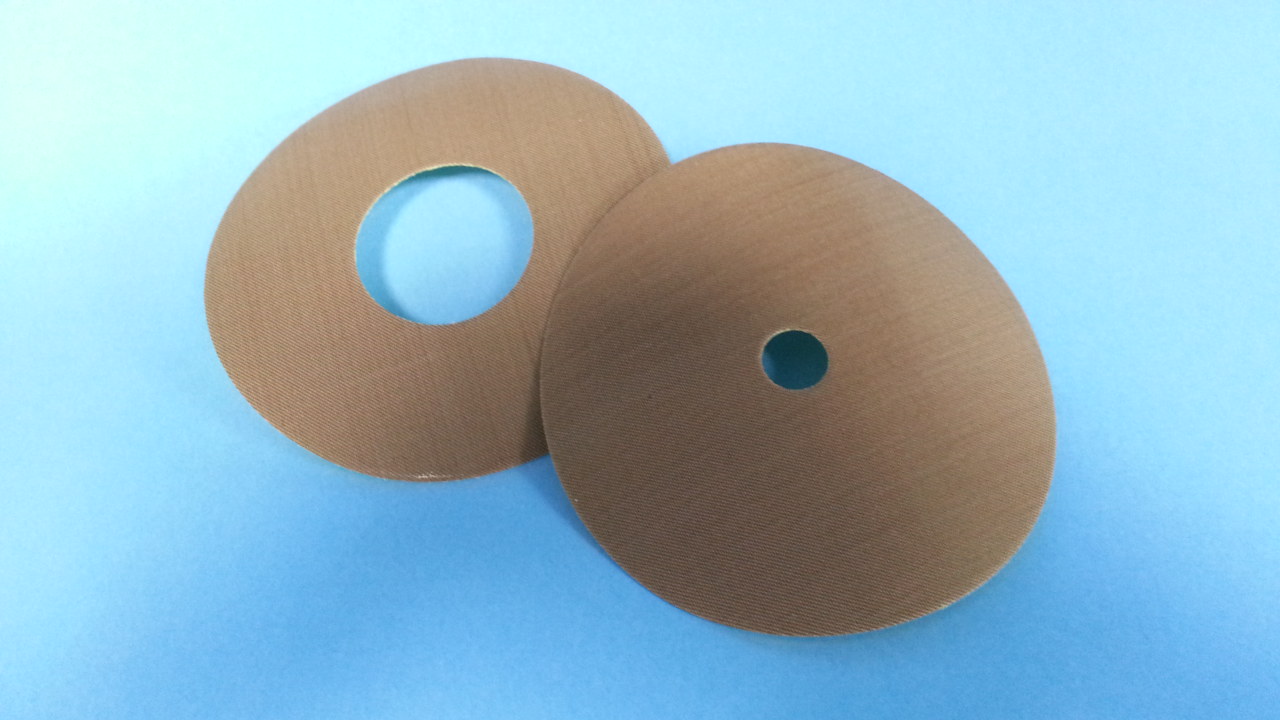

Wear liners are used with all KrellTech polishers to ensure smooth and controlled polishing, eliminating the need for messy lubricants.  Liners are easily replaced on both the base polisher and platen contact surfaces.

April 14, 2020, 5:30 p.m.
Q
What is the thickness of the rubber pads?
A
5mm (0.2 inches).
April 9, 2020, 5:22 p.m.
Q
What is the purpose of wear liners?
A
These liner create a frictionless interface between the rotating platen and the polishing baseplate.
April 6, 2020, 9:12 p.m.
Q
Which pads are recommended for the connector type illustrated in the attachment?
A
To achieve a flat ferrule endface, glass disks are used for polishing. These will also be listed in your quotation.
March 26, 2020, 6:28 p.m.
Q
What durometer/hardness are the pads you supply?
A
40D, 60D, 70D, 90D
March 23, 2020, 5:36 p.m.
Q
Can you provided rubber pads with custom dimensions?
A
Yes. Please forward your required dimensions and all relevant requirements directly to sales@krelltech.com.
March 23, 2020, 4:40 p.m.
Q
Which rubber pads should I use with the attached connector type?
A
For most applications, MT connectors such as this are polished on glass disks to maintain flatness across the ferrule endface.
Feb. 2, 2020, 10:07 p.m.
Q
What pad hardness is required for these connectors?
A
Glass disks are used.

Polishing Films Precision Rubber Pads Polishing Films Polishing films are available for processing all industry standard optical connectors and bare fibers. Abrasive materials include:  Silicon carbide  Aluminum oxide  Silicon dioxide  Cerium oxide PSA, non-PSA and flock versions are also available depending upon material. Grit sizes range from 30 micron to 0.02 micron. Film diameters: 5”, 4” and 2” Contact KrellTech for custom film types and configurations. Rubber Pads These rubber pads are precision ground for flatness and uniformity. A variety of disk hardness provides the ability to control endface geometries during the polishing process. Standard pads include:  90 durometer (black)  70 durometer (purple)  40 durometer (orange) Specialty pads include:  Glass disks  Hybrid rubber/glass disks Disk/pad diameters: 5”, 4”, 2” Contact KrellTech for custom pad hardness. and diameters. krell technologies, inc. · tel: (732) 617-7091 · sales@krelltech.com · www.krelltech.com
